Purdue Performance Stage 3 TD04 BSB For Abarth 500/595/695 and Grande Punto

The Purdue Performance Stage 3 TD04 BSB Turbo Kit is the ultimate upgrade for serious T-Jet enthusiasts.

This kit delivers exceptional power and reliability and it will also provide safe and consistent performance at 280+ BHP, but with supporting modifications, you can see figures of 300–350 BHP.

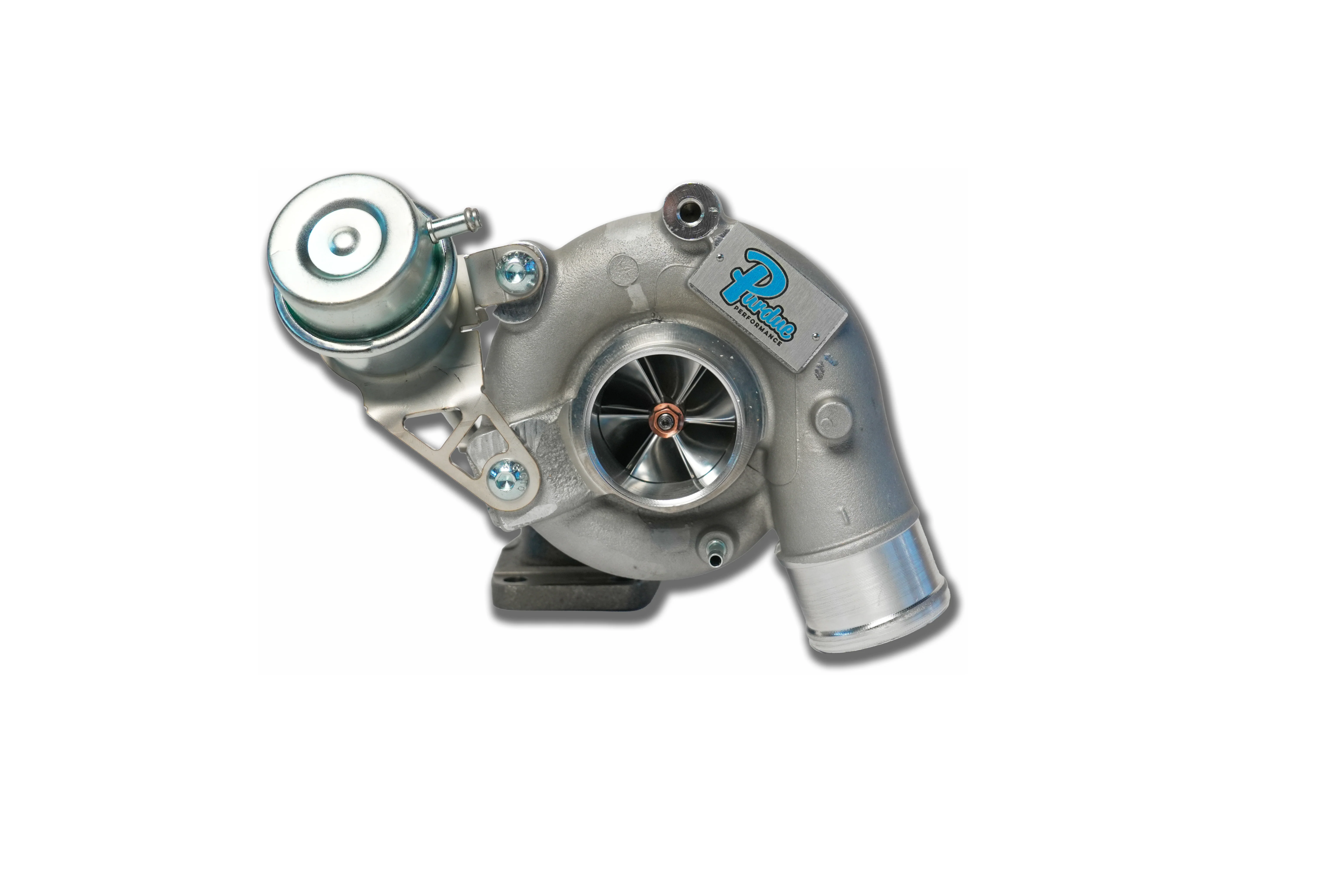

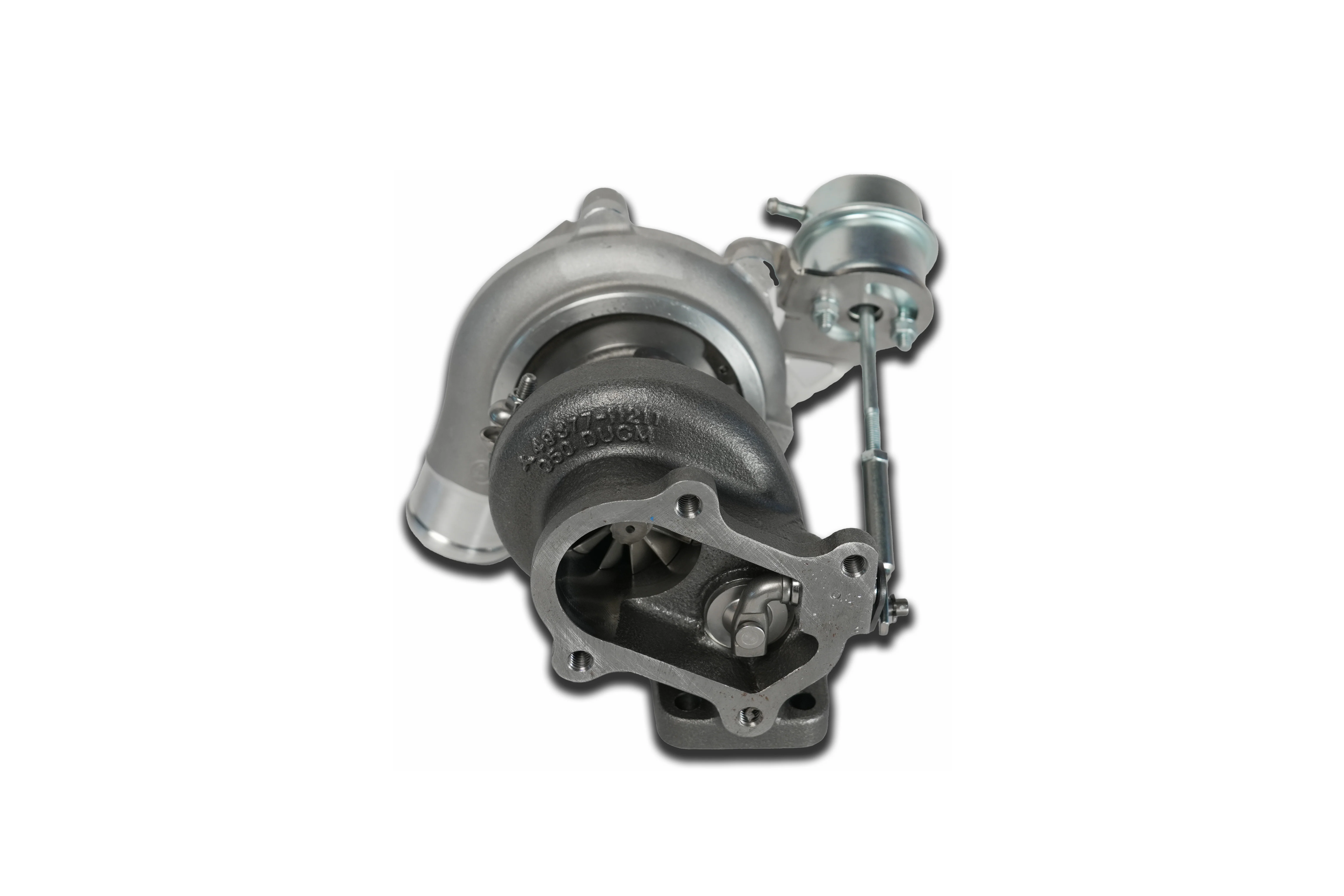

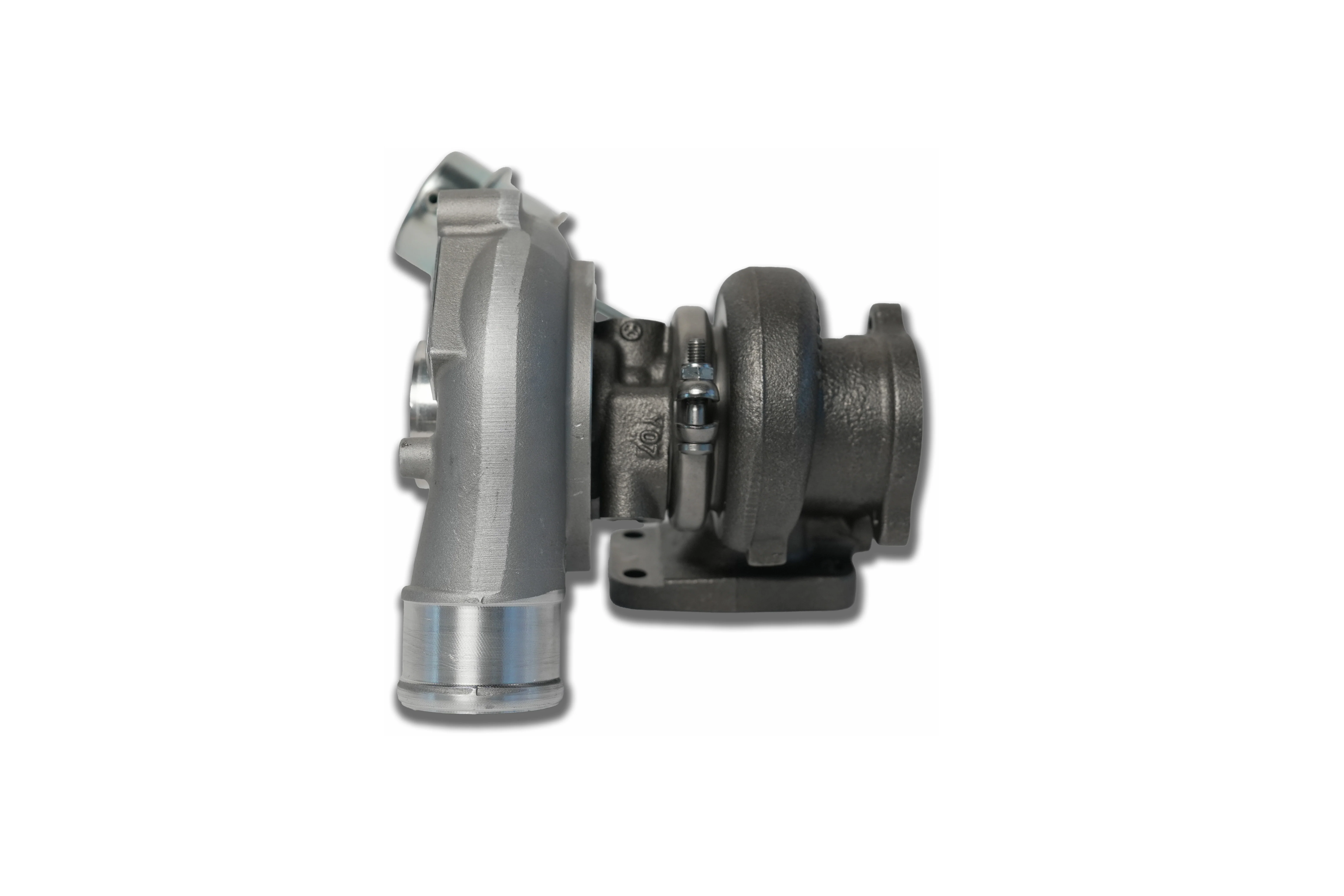

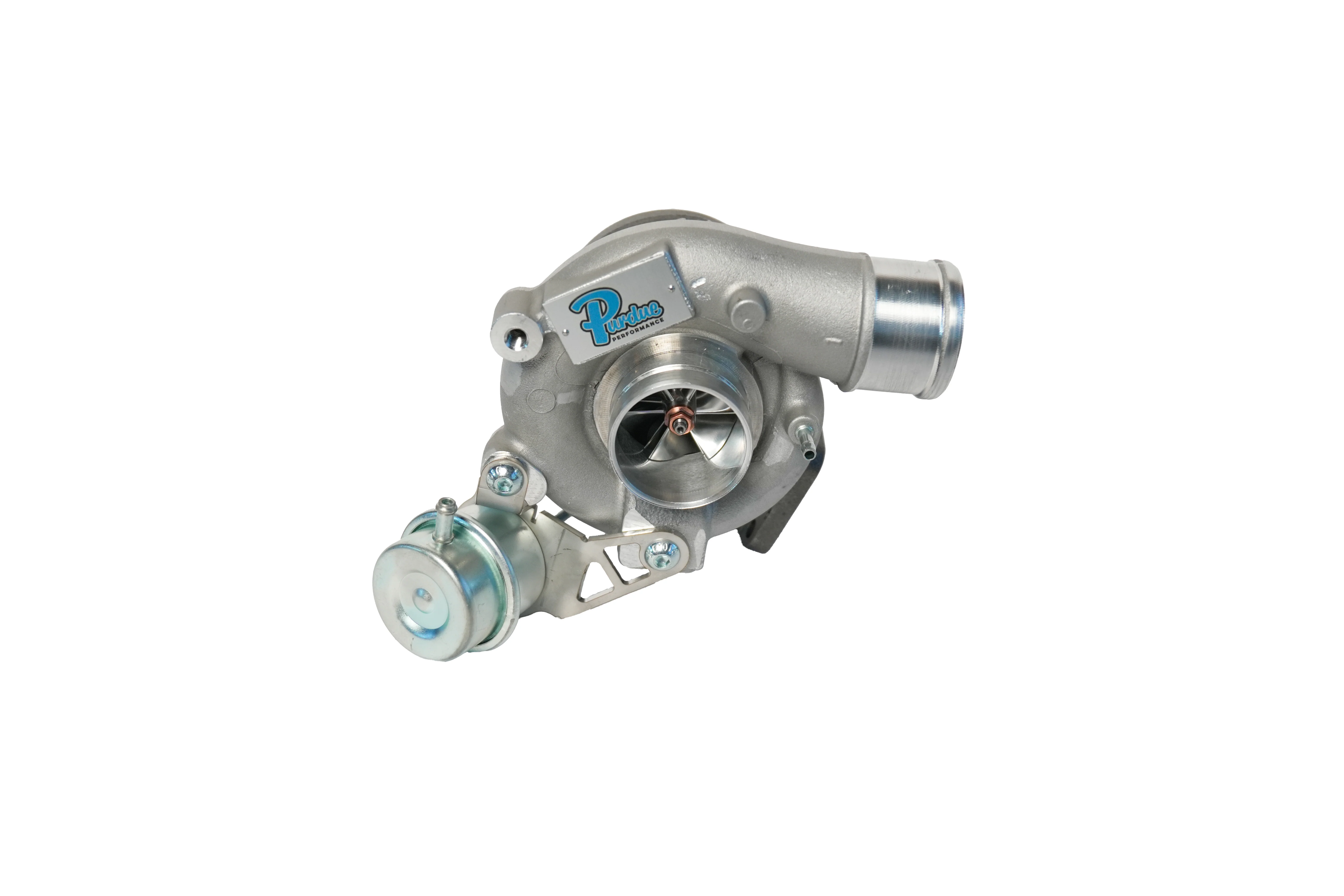

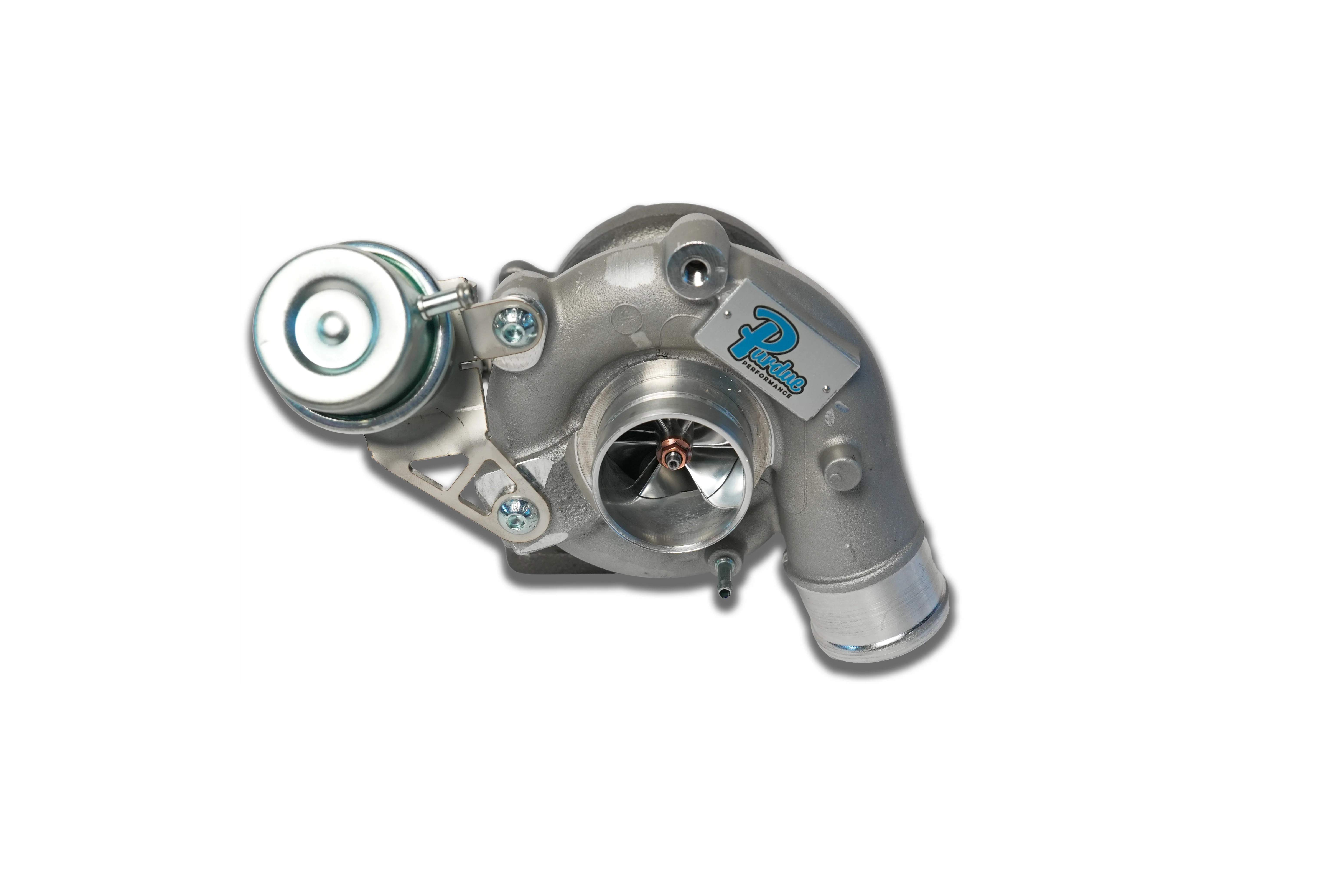

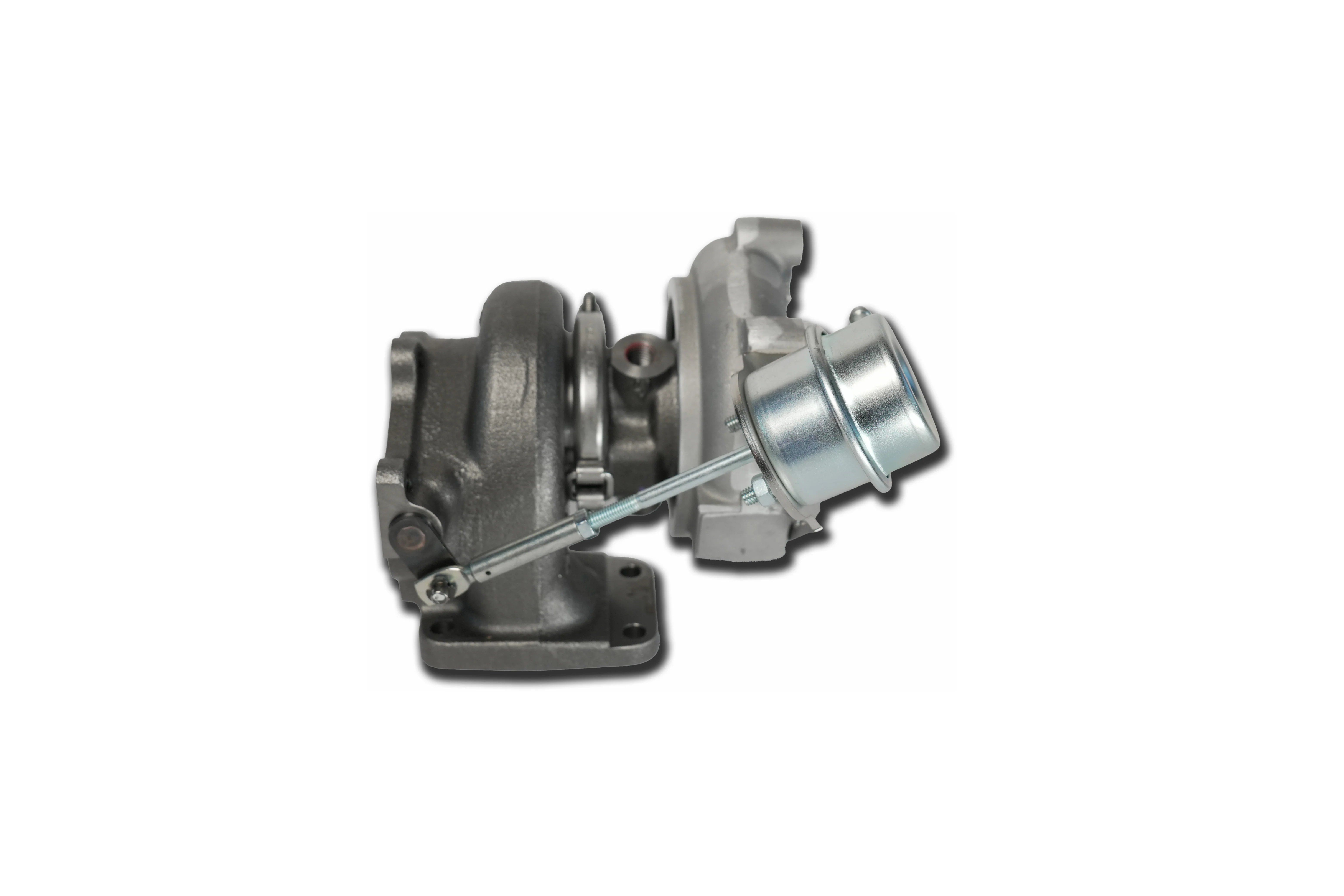

Turbo Specifications

• 0.6 Bar wastegate actuator for electronic boost control, ensuring precise pressure management

• Avional impeller with 6+6 oversized blades to maximize airflow

• HL-derived discharge impeller with an enlarged shaft for improved durability and response

• Turned venturi intake design, which minimizes turbulence and improves efficiency

• Enlarged wastegate port, allowing smoother boost transitions

Note: An ECU remap and 99-octane fuel are required for optimal and safe operation.

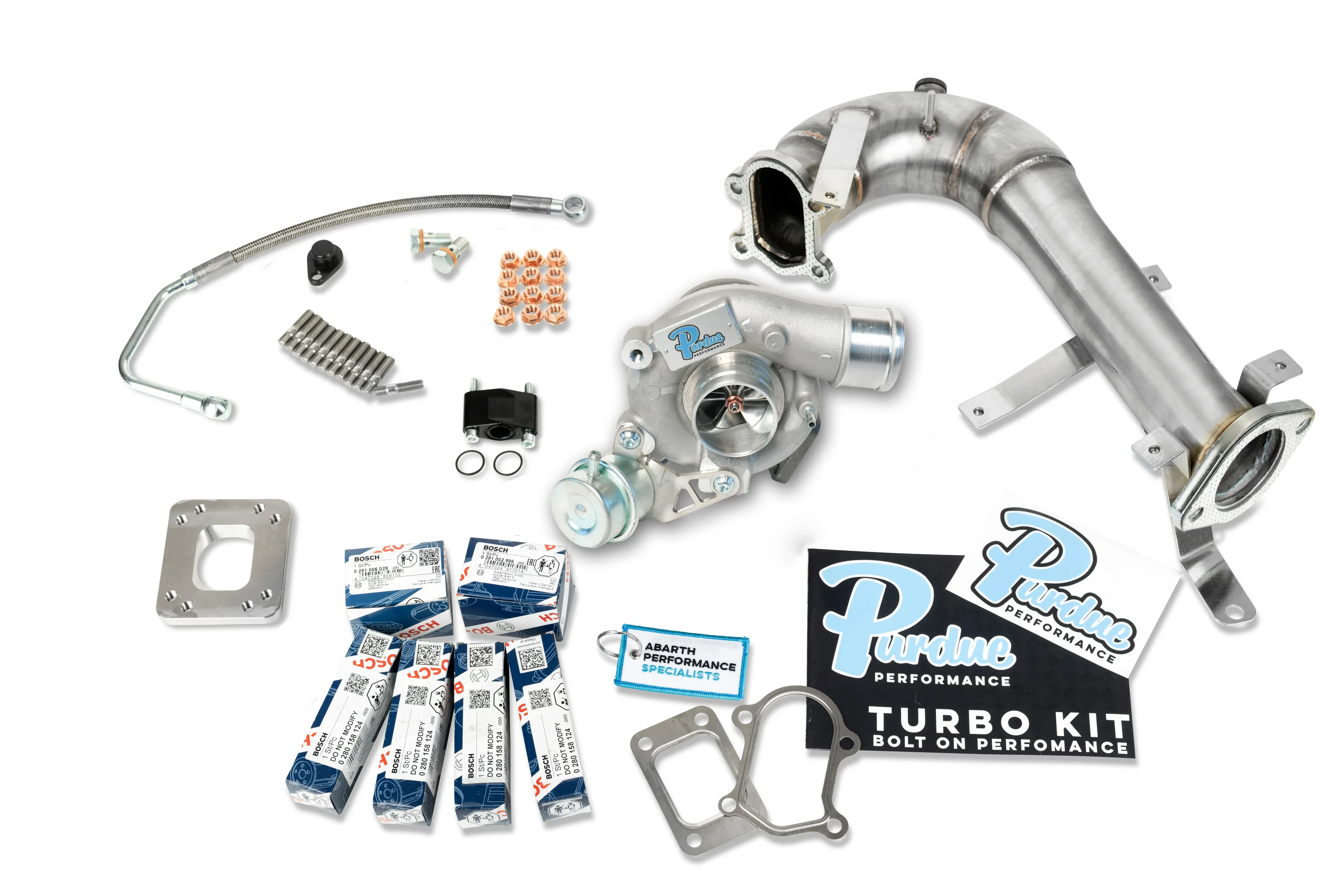

What's included?

• TD04 BSB Turbo with 6+6 Avional impeller

• 0.6 Bar Actuator

• De-Cat Downpipe (Sports Cat available on request)

• Oil Feed and Return Lines

• All flanges, nuts, bolts, and fittings required for installation

• Oil spacer, mounting hardware, and gaskets

• All screws and clamps necessary for a complete fit

Optional Upgrades

• Bosch 630cc Injectors

• Bosch 3-Bar Boost and MAP Sensors

Important: All models except the 180 BHP version require uprated sensors.

An uprated Pierburg valve is required for Series 4 Abarth models and is recommended for all Abarths running a hybrid turbo setup.

Important Notes: The De-Cat Downpipe is for track use only and will not pass MOT emissions testing.

Each kit is made to order, so please allow 2–3 weeks for delivery.

---

Recommended Supporting Modifications for 300+ BHP

• Purdue Performance Fast Road or Corsa Racing Camshaft (SKU: PPFRCS1 & PPCRCS1)

• Front Mount Intercooler with high-flow, large-core design

• Purdue Performance Low Air Intake System (SKU: PPLDAI-1)

• Tubular Exhaust Manifold

• 2.5” Full Exhaust System (turbo-back configuration)

• Bonalume Dump Valve (SKU: BOVES1) for improved boost response and reliability
